"FL-330" High Sensitivity Wall Contact Microphone -Dual Flat Mic. Type-



OVERVIEW

FL-330 released as a successor of SK-300. FL-330 is equipped with a pin-less doulble faced flat contact microphone. Because there is no contact pin, no need to worry about breaking it. It endures rough use. As to the amplifier we refined the amp. of SK-300 and succeeded obtaining high-quality sound. Inheritting SK-300's genes, FL-330 joined the lineup of our wall contact microphone.


FEATURE

Double faced flat mic.
Contact MIC of FL-330 has two sides. One of them is a regular side which picks up the wide range of frequency that contains a large information volume. Another side is a reverse side which picks up human voice mainly.	Regular side	Reverse side

Amplifier
Amplifier of FL-330 inherits genes of SK-300. In addition to its easy operation and compact body FL-330 has another advantage. It is a recording output which especially tuned to IC recorder. By using IC recorder you can obtain clear recording. Note: You need optional recording cable. Note: We recommand Japanse brand IC recorder.	Simple and easy operation	Battery box

How to use
Connect flat micropone and earphone to the amplifier. Then place the flat microphone to the wall. Turn the volume slowly. Thickness of the wall is upto 40cm. Ideal architecture is the wall without hollow space inside.

	Standard usage	Placing flat MIC. onto the wall

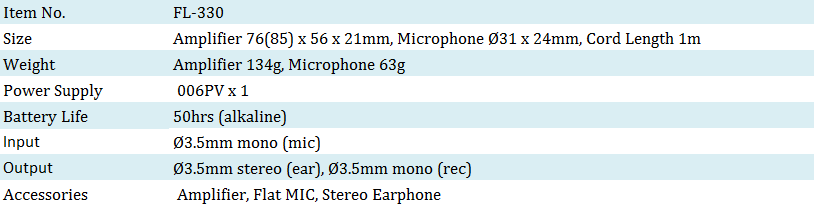

FL-330 DIAGRAM

		1. Power switch & Volume 2. Recording output 3. Earphone output 4. Flat MIC output 5. Flat MIC input 6. Earphone 7. Front cover & screw
